Model: SS-174 MSRP* $11.49 |
Model: SS-174S MSRP* $10.99 |
|
|
|
|
Model: SS-174 MSRP* $11.49 |
Model: SS-174S MSRP* $10.99 |

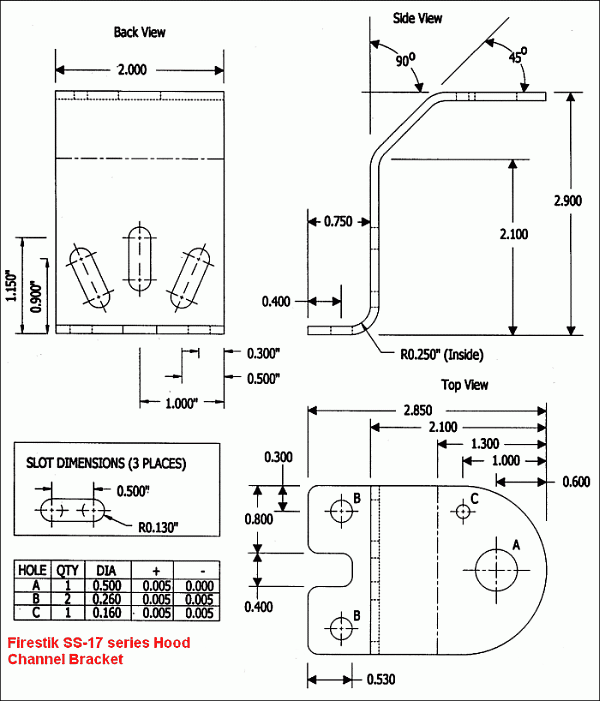

Designed for hood and trunk applications, these stainless steel mounts go on the inside channel of your hood or trunk. There are no visible mounting holes required. All mounting hardware (also stainless steel) is hidden inside the hood or trunk channel. Either mount comes complete with antenna mounting stud. Click here to see installation line art.
We have two, hood channel models available.
The SS-174 is the tallest of these two mounts. Many of the newer Ford and Chevy pick-ups have a deep channel for the hood. This mount is ideal for those vehicles. Of course, this mount isn't limited to pick-ups. It can be used on just about any vehicle with a hood and/or trunk. The bracket measures 2.9" (74cm) from the mounting base to the top of the bracket itself. The height from the mounting base to the first bend is 2.1" (53mm) so it can be used on channels with depths up to 2" (51mm). This bracket is also available in one of our cable/mount mini-kits. See MK-174.
The SS-174S is a shortened version of the hood/trunk channel mount. Most pre-1992 pick-ups and cars have a shallower hood/trunk channel. Of course, this mount may also be used on most vehicles with a hood and/or trunk. This bracket measures 2.2" (56cm) from the mounting base to the top of the bracket itself. The height from the mounting base to the first bend is 1.4" (36mm) so it can be used on channels with depths up to 1.3" (33mm).
Either mount may be used with heavy-duty Firestik antennas up to 48" (122cm)
We did a complete antenna and radio installation on a 1999 F350. The process was documented with text and pictures. If you would like to follow the process, click ... "F350 CB Installation"
